The 1000A 3-Phase Power Analyzer/Datalogger is a high performance three-phase power quality analyzer, which can measure three-phase current, voltage, power, power factor and other parameters, and support waveform display and harmonic analysis. It can be widely used in power quality evaluation, motor load analysis, energy management and other occasions.

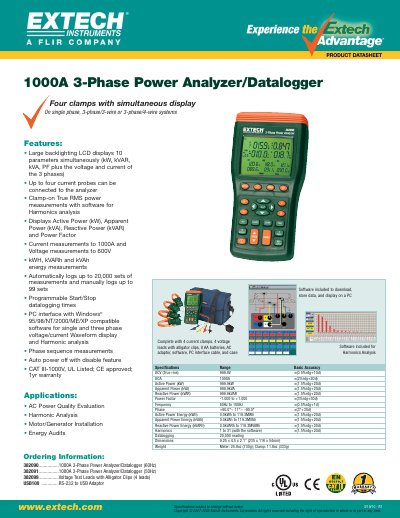

The Extech 1000A is a 3-phase power analyzer and datalogger designed for single phase, 3-phase/3-wire, or 3-phase/4-wire systems. It features four clamps with simultaneous display capabilities on a large backlighting LCD screen.
| Current Measurement Range | 1000A |
|---|---|
| Voltage Measurement Range | 600V |
| Active Power Range | 999.9kW |
| Apparent Power Range | 999.9kVA |
| Reactive Power Range | 999.9kVAR |
| Power Factor Range | -1.000 to +1.000 |
| Frequency Range | 60Hz to 100Hz |
| Datalogging Capacity | 20,000 sets |
| Dimensions | 9.25 x 4.5 x 2.1" |
| Weight | Meter: 25.8oz; Clamp: 11.8oz |
It works on single phase, 3-phase/3-wire, or 3-phase/4-wire systems.
Up to four current probes can be connected to the analyzer.
The package includes 4 current clamps, 4 voltage leads with alligator clips, 8 AA batteries, an AC adaptor, software, a PC interface cable, and a case.
