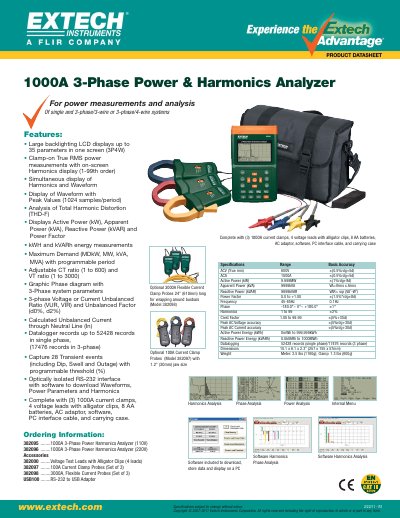

The document provides specifications and features of the 1000A 3-Phase Power Harmonics Analyzer produced by Extech Instruments Corporation between 2007 and 2011.
The Extech 1000A is a power analyzer designed for measuring and analyzing single-phase and three-phase/3-wire or 3-phase/4-wire systems. It supports current measurements up to 1000A and features a large backlighting LCD capable of displaying up to 35 parameters simultaneously.
| Current Range | 1000A |
|---|---|
| Voltage Range | 600V |
| Active Power Range | 9.999MW |
| Apparent Power Range | 9999kVA |
| Reactive Power Range | 9999kVAR |
| Frequency Range | 45-65Hz |
| Harmonics Order | 1 to 99 |
| Datalogging Capacity (Single Phase) | 52428 records |
| Dimensions | 10.1 x 6.1 x 2.3" (257 x 155 x 57mm) |
| Weight | 2.5 lbs (1160g) |
The analyzer is designed for measuring and analyzing single-phase, three-phase/3-wire, or three-phase/4-wire power systems.
The datalogger is capable of recording up to 52,428 records when operating in single-phase mode.
The meter measures 10.1 x 6.1 x 2.3 inches, which is equivalent to 257 x 155 x 57mm.
