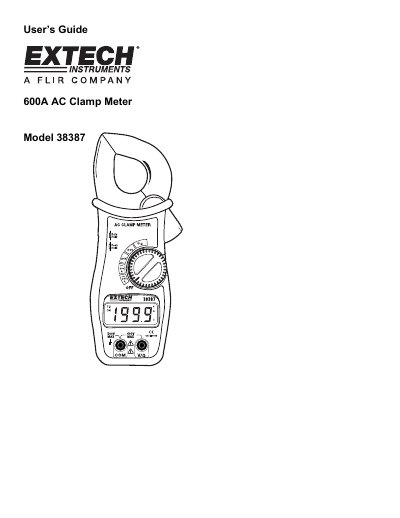

This document is a user guide for the 600A AC Clamp Meter Model 38387, providing safety notes, warnings, and cautions for using the meter.
The Extech Model 38387 is a 600A AC clamp meter designed for measuring current, voltage (AC/DC), resistance, and continuity. It features a 3-1/2 digit LCD display with Data Hold and Peak Hold functions to capture readings easily.
| AC Current Range | 199.9 ACA, 800 ACA @ 50/60Hz |
|---|---|
| DC Voltage Range | 600 VDC |
| Resistance Range | 1999 Q |
| Continuity Threshold | < 40Q approx. |
| Display Type | 3-1/2 digits (2000 counts) LCD |
| Battery Type | 9V battery (IEC 6F22) |
Press the data hold button to freeze the LCD meter reading, indicated by a DH icon.
It uses a 9V battery compliant with IEC standard 6F22.
