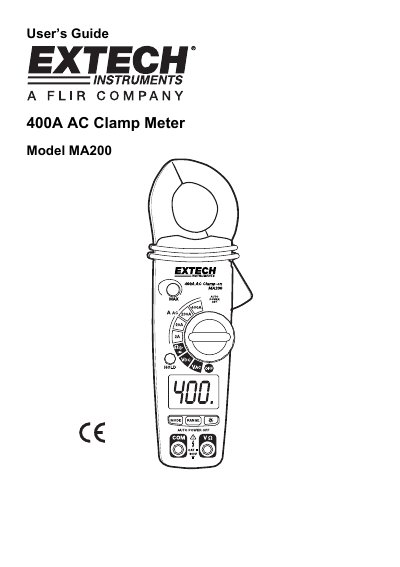

This manual introduces the safety use, maintenance methods of MA200 AC clamp meter, as well as how to operate and use this product.
The Extech MA200 is a professional AC clamp meter designed to measure alternating current (AC) up to 400A, as well as direct current (DC), voltage, and resistance. The device features an LCD display with backlight, data hold, max hold, and audible continuity functions.
| AC Current Range | 2.000A, 20.00A, 200.0A, 400A |
|---|---|
| AC Voltage Range | 200.0mV to 600V |
| DC Voltage Range | 200.0mV to 600V |
| Resistance Range | 200.0Ω to 20.00MΩ |
| Jaw Size | 23mm (0.9") approx. |
| Display Type | 3-1/2 digits (2000 counts) LCD |
The meter uses two 1.5V AAA batteries.
Set the function switch to the continuity position, push the mode button, and touch the probes to the circuit; an audible signal sounds if resistance is less than approximately 30Ω.
The meter can measure up to 400A of alternating current.
