The EX820/EX830 1000A AC/DC True RMS Clamp Meter offers AC/DC current, voltage, resistance, capacitance, frequency, temperature and diode measurement functions and also has a non-contact infrared temperature measurement function with a laser pointer.

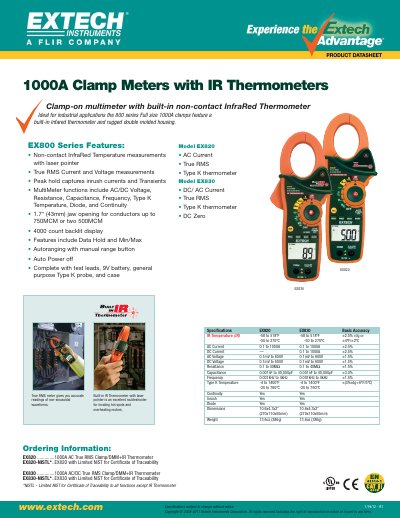

This document provides technical specifications for the Extech EX820 and EX830 series of 1000A AC/DC True RMS Clamp Meters with built-in IR Thermometers. The devices are designed for industrial applications, featuring a rugged double molded housing and a 4000 count backlit display.
| AC Current Range | 0.1 to 1000A |
|---|---|
| DC Voltage Range (EX830) | 0.1mV to 600V |
| Resistance Range | 0.1 to 40MΩ |
| Capacitance Range | 0.001nF to 40,000μF |
| Frequency Range | 0.001kHz to 4kHz |
| Dimensions | 270x110x50mm |
The device features a 4000 count backlit display with a 1.7" (43mm) jaw opening.
Both models feature a 1000A AC or DC True RMS clamp capability.
The meter has a 1.7" (43mm) jaw opening designed for large conductors.
The built-in IR thermometer measures temperatures from -58 to 518ºF.
