MA120 / MA150 200A AC / DC Mini Clamp Meter with Voltage Detector + Flashlight

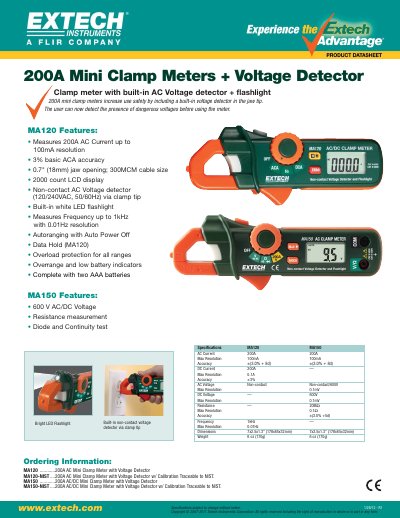

The document is a product datasheet for the EXTECH MA120 and MA150 mini clamp meters. It describes the MA120 as an AC-only model and the MA150 as an AC/DC model, both featuring a built-in non-contact voltage detector and LED flashlight for enhanced safety and utility.
| AC Current Range | 200A |
|---|---|
| AC Current Resolution | 100mA |
| AC Current Accuracy | 3% + 8d |
| Jaw Opening | 0.7" (18mm) |
| Max Cable Size | 300MCM |
| AC Voltage Detection | Non-contact |
| Voltage Detection Ranges | 120/240VAC, 50/60Hz |
| Frequency Measurement | up to 1kHz |
| Frequency Resolution | 0.01Hz |
| DC Voltage Range (MA150) | 600V |
| Resistance Range (MA150) | 20M |
| Resistance Accuracy (MA150) | 3% + 5d |
| Dimensions | 7x2.5x1.3" (178x65x32mm) |
| Weight | 6 oz (170g) |
Yes, both models include a built-in white LED flashlight.
The jaw opening is 0.7 inches (18mm).
Yes, the device includes overload protection for all ranges.
