The EX820 and EX830 are two high-performance digital multimeters that feature True RMS measurement and an infrared thermometer to measure various electrical parameters including AC and DC current, voltage, resistance, frequency, temperature, diodes and continuity.

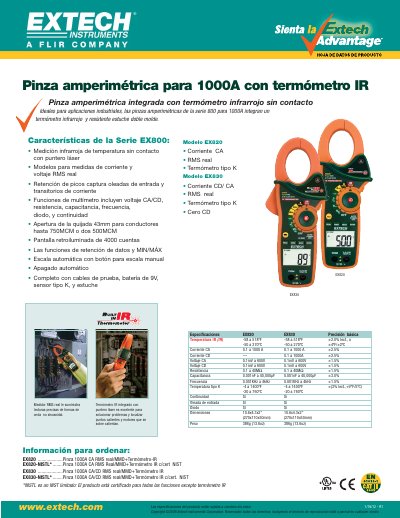

This document provides product specifications for the EXTECH EX820, a clamp meter designed for measuring AC current up to 1000A with true RMS accuracy. The device also includes a Type K IR thermometer for non-contact temperature measurements ranging from -68°F to 1400°F.
Key features highlighted include a 4000-count backlit display, automatic and manual scaling, and a jaw opening of 43mm capable of measuring conductors up to 750MCM. The unit comes complete with test leads, a 9V battery, and a Type K sensor. This manual is written in Spanish.
| AC Current Range | 0.1A to 1000A |
|---|---|
| AC Voltage Range | 0.1V to 600V |
| DC Voltage Range | 0.1V to 600V |
| Resistance Range | 0.1Ω to 40MΩ |
| Capacitance Range | 0.001nF to 40.000µF |
| Frequency Range | 0.001kHz to 4kHz |
| Jaw Opening | 43mm |
| Display | 4000 counts backlit |
| Dimensions | 10.6 x 4.32 x 1.1 inches |
| Weight | 386g |
The jaw opening measures 43mm.
The unit dimensions are 10.6x4.32 inches.
