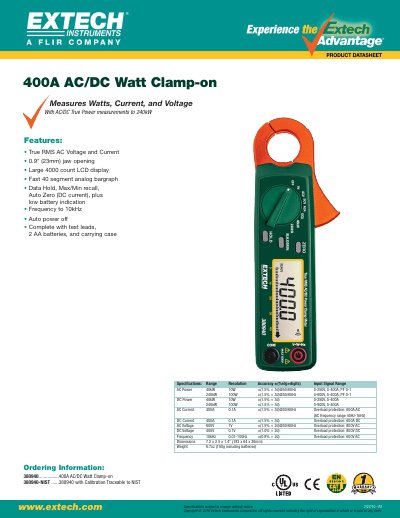

Extech 380940 400A AC/DC Watt Clamp-on is a power, current and voltage measurement instrument with AC/DC true power measurement capability up to 240kW 400A.
The EXTECH 400A is a clamp-on instrument designed to measure Watts, Current, and Voltage with AC/DC True Power capabilities up to 240kW. It features a large 4000 count LCD display and a fast 40-segment analog bargraph for visual feedback.
| Power Measurement Range | 40kW AC/DC |
|---|---|
| Jaw Opening | 0.9" (23mm) |
| Display Type | 4000 count LCD |
| AC Power Accuracy | +(1.5% + 3d) |
| DC Power Accuracy | +(1.5% + 3d) |
| AC Voltage Range | 600V |
| Frequency Range | 0.01-100Hz to 10kHz |
| Dimensions | 7.2 x 2.5 x 1.4" (183 x 64 x 36mm) |
| Weight | 6.7oz (190g) |
The instrument measures Watts, Current, and Voltage using AC/DC True Power measurements.
The maximum power rating for AC Power measurements is 240kW.
The jaw opening size is 0.9 inches or 23mm.
