EX700 series multimeters provide AC/DC current, AC/DC voltage, resistance, frequency, capacitance, temperature, diode, continuity and other testing functions, with peak function, data hold function, 1.2-inch circular jaw opening, and equipped with test leads, 9V battery, and general purpose K-type probe

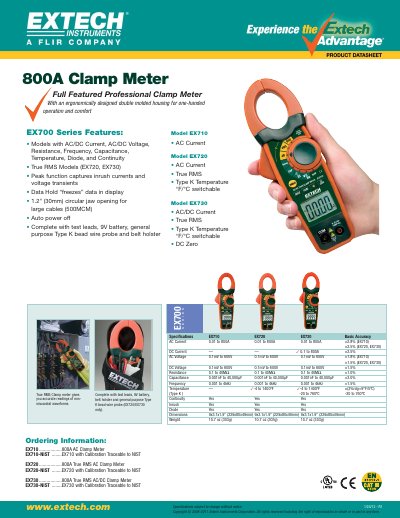

The document describes the Extech EX710, part of the EX700 Series of instruments. It is characterized by an ergonomically designed double molded housing intended for one-handed operation and user comfort.
Key features include True RMS measurement capabilities, a 1.2-inch circular jaw opening suitable for large cables up to 600MCM, and various measurement functions such as AC/DC current, voltage, resistance, capacitance, frequency, temperature (Type K), diode testing, and continuity.
| AC Current Range | 0.01 to 800A |
|---|---|
| DC Voltage Range | 0.1mV to 600V |
| Resistance Range | 0.1 to 40MΩ |
| Capacitance Range | 0.001nF to 40,000µF |
| Frequency Range | 0.001 to 4kHz |
| Jaw Opening | 1.2" (30mm) circular |
| Dimensions | 9x3.1x1.9" (229x80x49mm) |
| Weight | 10.7 oz (303g) |
The meter measures AC current from 0.01 to 800A.
The meter measures AC and DC voltage from 0.1mV to 600V.
The meter has a circular jaw opening measuring 1.2 inches (30mm).
