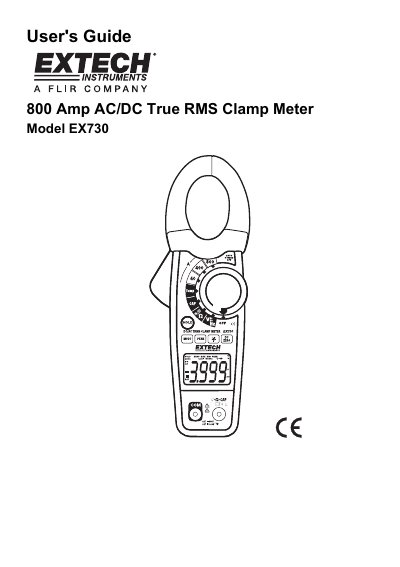

The EXTECH EX730 is a clamp meter designed to measure AC and DC current up to 800A, as well as voltage, resistance, capacitance, frequency, temperature, and continuity. The device features a backlit LCD display, data hold, peak capture, and automatic power-off functions to ensure safe and accurate measurements.
| AC Current Range | 40.00A, 400.0A, 800A |
|---|---|
| DC Current Range | 40.00A, 400.0A, 800A |
| AC Voltage Range | 400.0mV to 600V |
| DC Voltage Range | 400.0mV to 600V |
| Resistance Range | 400.0Ω to 40.00MΩ |
| Capacitance Range | 4.000nF to 4.000mF |
| Frequency Range | 4.000kHz |
| Temperature Range | -4 to 1400 °F / -20 to 760 °C |
The maximum current measurement range is 800A AC/DC.
Yes, the meter can measure both AC and DC voltage up to 600V.
Press the DC ZERO button to zero the meter display.
The meter will automatically turn off after approximately 25 minutes to conserve battery life.
