Extech 45170 Pocket Hygro-Thermo-Anemometer-Light Meter Specifications

This product is a 4-in-1 environmental meter that measures humidity, temperature, air velocity and light. It is small and portable, has high accuracy, fast response and can be used in various occasions.

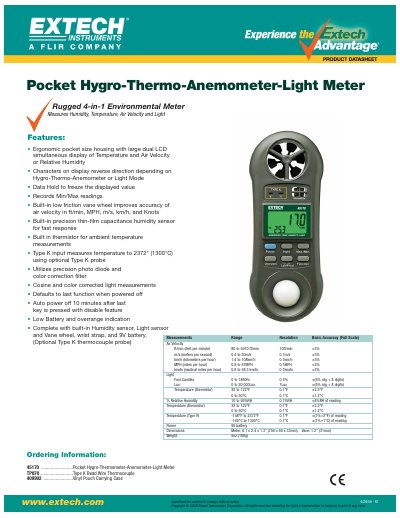

Extech 45170 Pocket Hygro-Thermo-Anemometer-Light Meter Specifications - cover page
Brand
EXTECH
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
146 KB
Published
01 August, 2012
Updated
30 September, 2023
Model
45170
MD5 checksum
2307DC7A65B72CC32401A6D3E5D31C0D

About this manual

The Extech 45170 is a rugged 4-in-1 environmental meter designed to measure humidity, temperature, air velocity, and light. It features an ergonomic pocket-size housing with a large dual LCD display that shows Temperature and Air Velocity or Relative Humidity simultaneously. The device includes a built-in low friction vane wheel for accurate air velocity measurements and a precision thin-film capacitance humidity sensor for fast response.

What's inside

  • Ordering Information
  • Features
  • Air Velocity
  • Light
  • Temperature
  • Relative Humidity
  • Power
  • Dimensions
  • Weight

Specifications

Air Velocity Range (ft/min)80 to 5910 ft/min
Air Velocity Resolution (ft/min)10ft/min
Light Range (Foot Candles)0 to 1860Fc
Light Accuracy (Foot Candles)±(5% rdg + 8 digits)
Temperature Range (Thermistor)32 to 122°F
Relative Humidity Range10 to 95%RH
Relative Humidity Accuracy±4%RH of reading
Power Source9V battery
Dimensions6.1 x 2.4 x 1.3" (156 x 60 x 33mm)
Weight5oz (160g)

Frequently asked questions

What measurements can the Extech 45170 perform?

The device measures humidity, temperature, air velocity, and light.

What is the maximum temperature range for the Type K probe?

The Type K probe measures temperature from -148°F to 2372°F.

How long does the device remain powered on after the last key press?

The unit auto powers off 10 minutes after the last key is pressed.
