Extech HD350 Pitot Tube Anemometer + Differential Manometer is a multi-functional instrument that simultaneously displays pressure, air velocity or air flow plus temperature. It features a maximum measurement range of 0.7252psi, 5 selectable units of pressure measurement, Max/Min/Avg recording and Relative time stamp, Data Hold and Auto power off functions, Large LCD display with backlighting, Zero function for offset correction or measurement, Store/Recall up to 99 readings in each mode, USB port includes software.

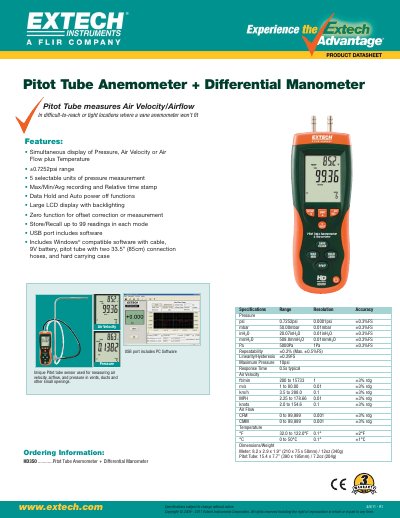

The document provides technical specifications for the Extech HD350 Pitot Tube Anemometer + Differential Manometer. It highlights features such as simultaneous display of pressure, air velocity, or air flow plus temperature, along with data recording functions like Max/Min/Avg and Relative time stamping.
Detailed performance metrics are listed, including a pressure range of ±0.7252psi with selectable units (psi, mbar, inH2O, mmH2O, Pa), an air velocity range from 1 to 80.00 m/s, and temperature measurement capabilities. The device includes a USB port for compatible software and comes with accessories like a pitot tube and carrying case.
| Pressure Range (psi) | ±0.7252psi |
|---|---|
| Pressure Resolution (psi) | 0.0001psi |
| Air Velocity Range (m/s) | 1 to 80.00 m/s |
| Temperature Range (°F) | 32.0 to 122.0°F |
| Dimensions/Weight (Meter) | 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) / 12oz (340g) |
Yes, it features Max/Min/Avg recording with Relative time stamping, as well as Data Hold and Auto power off functions.
The accuracy for pressure measurements is ±0.3%FS across all supported units (psi, mbar, inH2O, mmH2O, Pa).
