This is a high temperature metal vane anemometer that can measure air flow (CFM) or air velocity and temperature. It is powered by a 9V battery and supports RS-232 PC serial interface. Optional data acquisition software is available

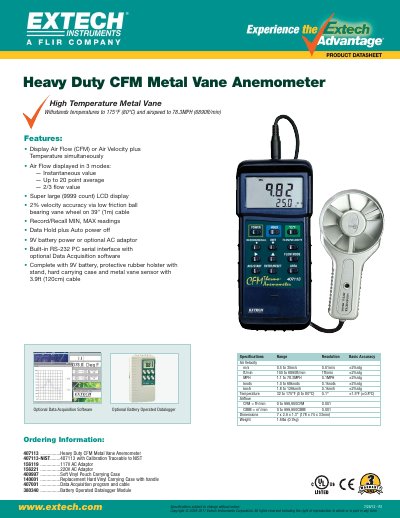

The document is a product datasheet for the EXTECH 407113 Heavy Duty CFM Metal Vane Anemometer. It highlights key features such as simultaneous display of air flow or velocity with temperature, high-temperature resistance up to 175°F (80°C), and various data recording capabilities including min/max recall and data hold.
| Air Velocity (m/s) | 0.5 to 35 m/s |
|---|---|
| Temperature Range | -22 to 175°F (-30 to 80°C) |
| Airflow CFM Range | 0 to 999,900 CFM |
| Dimensions | 7x2.9x1.3" (78x74x33mm) |
| Weight | 1.6 lbs (0.7 kg) |
The device measures up to 35 m/s, which corresponds to 78.3 MPH or 6890 ft/min.
Yes, it can display air flow or velocity plus temperature simultaneously with a range of -22°F to 175°F.
