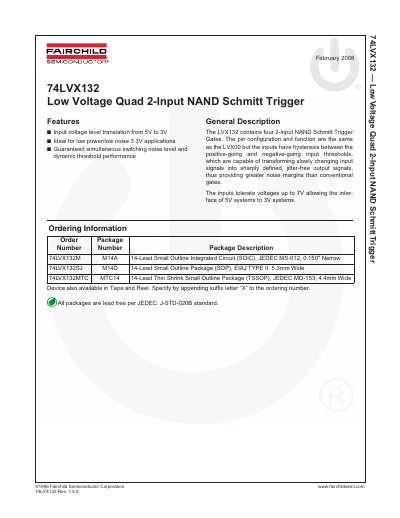

The 74LVX132 is a 2-Input NAND Schmitt Trigger device produced by Fairchild Semiconductor Corporation. It uses low voltage level translation technology to achieve a conversion from 5V to 3V, making it suitable for low power and low noise 3.3V applications.
The Fairchild 74LVX132 is a low-voltage quad 2-input NAND gate featuring Schmitt Trigger inputs. It is designed for low power and low noise 3.3V applications while offering input voltage level translation from 5V to 3V. The device provides guaranteed simultaneous switching noise levels and dynamic threshold performance to transform slowly changing input signals into sharply defined, jitter-free output signals.
| Supply Voltage | 2.0V to 3.6V |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Output Current | +/- 25mA |
The recommended operating supply voltage is between 2.0V and 3.6V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
