The document describes the features and characteristics of the 74LVX00 low voltage quad 2-input NAND gate from Fairchild Semiconductor Corporation, including input voltage level translation, ideal for low power/low noise 3.3V applications, guaranteed simultaneous switching noise level and dynamic threshold performance.

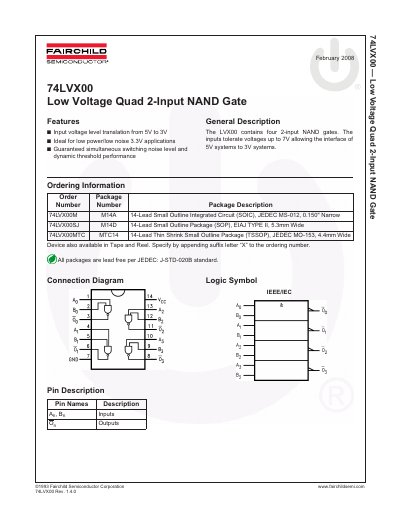

The document describes the Fairchild 74LVX00, a semiconductor device containing four 2-input NAND gates. It features input voltage level translation from 5V to 3V and is ideal for low power/low noise 3.3V applications where inputs can tolerate voltages up to 7V.
The datasheet details the absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and provides physical dimensions for three available packages: SOIC (M14A), SOP (M14D), and TSSOP (MTC14).
| Supply Voltage (Recommended) | 2.0V to 3.6V |
|---|---|
| Input Voltage Range | 0V to 5.5V |
| Operating Temperature | -40°C to +85°C |
| Power Dissipation | 180mW |
| Number of Gates | Four 2-input NAND gates |
The recommended operating supply voltage is between 2.0V and 3.6V.
The device is available in SOIC (M14A), SOP (M14D), and TSSOP (MTC14) packages.
