This datasheet lists the absolute maximum ratings, electrical characteristics, and package dimensions of the BSR58.

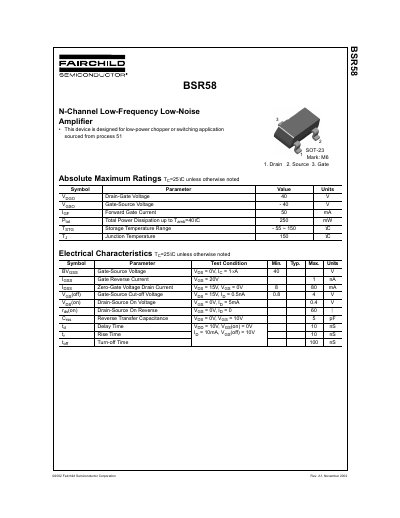

This document is a datasheet for the Fairchild Semiconductor BSR58, an N-Channel Low-Frequency Low-Noise Amplifier designed for low-power chopper or switching applications. The device is available in a SOT-23 package.
| Drain-Gate Voltage | 40 V |
|---|---|
| Gate-Source Voltage | - 40 V |
| Forward Gate Current | 50 mA |
| Total Power Dissipation | 250 mW |
| Storage Temperature Range | - 55 ~ 150 °C |
| Junction Temperature | 150 °C |
The device can be stored between -55°C and 150°C.
