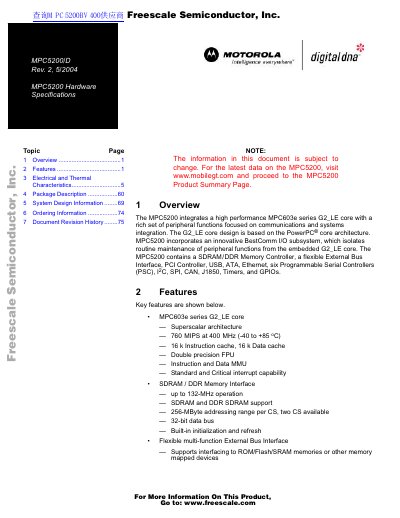

This document is about MPC5200 hardware specifications, mainly introduces the features of MPC5200, including processor core, memory controller, external bus interface and so on.
The document provides a comprehensive overview of the MPC5200/D hardware specifications. It highlights key features such as the MPC603e series G2_LE core with up to 760 MIPS performance at 400 MHz, an SDRAM/DDR memory interface supporting up to 132-MHz operation, and a flexible external bus interface.
The datasheet includes detailed electrical and thermal characteristics tables. These cover absolute maximum ratings for supply voltages (ranging from -0.3V to 3.6V depending on the buffer type) and storage temperatures (-55°C to +150°C). It also specifies recommended operating conditions, including ambient temperature ranges of -40°C to +85°C and die junction temperatures up to +115°C.
| Maximum G2_LE core operating frequency | 400 MHz |
|---|---|
| MIPS performance at 400 MHz | 760 MIPS |
| Maximum SDRAM/DDR operation frequency | 132-MHz |
| SDRAM addressing range per CS | 256-MByte |
| Supply voltage - G2_LE core (Min) | 1.42 V |
| Supply voltage - standard I/O buffers (Max) | 3.6 V |
| Storage temperature range | -55 to +150 °C |
| Ambient operating temperature range (Min) | -40 °C |
| Die junction operating temperature range (Max) | +115 °C |
The maximum G2_LE core operating frequency is 400 MHz.
The recommended supply voltage range for standard I/O buffers (VDD_IO) is 3.0 V to 3.6 V.
The device can be stored in a temperature range from -55 °C to +150 °C.
