This document contains information on a new product under development by Motorola. It is a product based on the PowerPC 603e RISC microprocessor. The document provides hardware specifications and information on different implementations of the product.

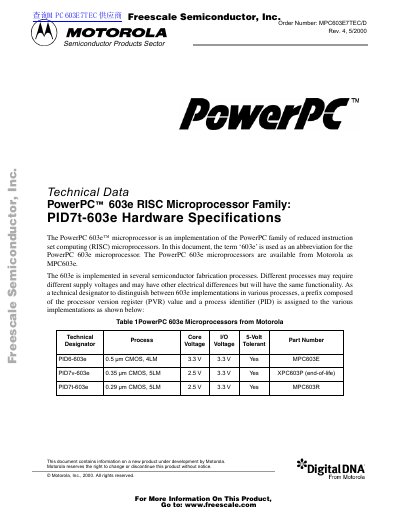

This document provides technical data for the Motorola PowerPC 603e RISC microprocessor, specifically the PID7t-603e implementation. It covers physical characteristics, features, general parameters, and electrical and thermal specifications. The microprocessor is a low-power, superscalar implementation of the PowerPC architecture, featuring five independent execution units and integrated caches.
| Die size | 5.65 mm x 7.7 mm |
|---|---|
| Transistor count | 2.6 million |
| Package | 255 ceramic ball grid array (CBGA) or 225 thin map plastic ball grid array (PBGA) |
| I/O supply voltage | 3.135 to 3.465 V |
| Die-junction temperature | 0 to 105 °C |
The absolute maximum rating for the core supply voltage is 2.75 V.
The recommended operating range for the I/O supply voltage is 3.135 V to 3.465 V.
The PID7t-603e is offered in both PBGA and CBGA packages.
