This document describes a new product under development by Motorola, namely the PowerPC 603e microprocessor. It provides information on changes to recommended operating conditions and electrical specifications, as well as listing the differences between this product and the general specifications.

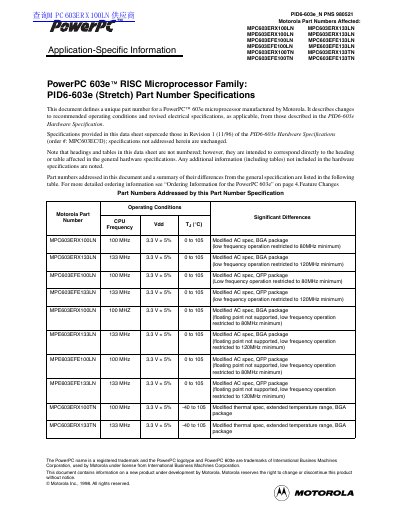

This document provides Part Number Specifications for the Motorola PowerPC 603e RISC microprocessor family. It defines unique part numbers for various configurations and describes changes to recommended operating conditions and revised electrical specifications compared to previous revisions. The document covers CPU frequencies ranging from 100 MHz to 133 MHz and includes specific details for BGA and QFP packages.
| CPU Frequency | 100 MHz, 133 MHz |
|---|---|
| Supply Voltage | 3.3 V ± 5% |
| Operating Temperature Range | 0 to 105 °C |
| Extended Temperature Range | -40 to 105 °C |
No, Motorola has discontinued the 120 MHz offering for this revision.
HRESET must be held asserted for a minimum of 255 bus clocks.
