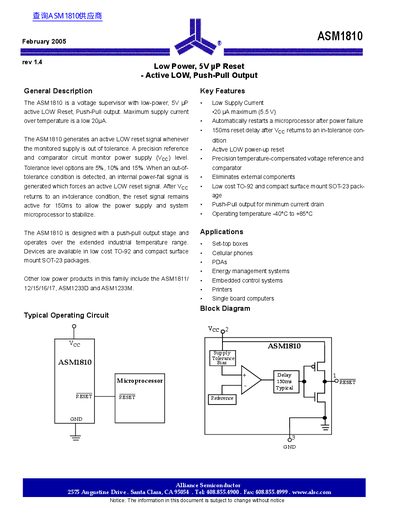

This document introduces the product ASM1810, including its features and characteristics such as low power, 5V µP reset, and push-pull output.
The ASM1810 is a voltage supervisor designed to generate an active LOW reset signal when the monitored supply voltage goes out of tolerance. It features a precision temperature-compensated reference and comparator circuit, eliminating the need for external components. The device operates over an extended industrial temperature range from -40°C to +85°C.
| Reset Delay Time | 150ms |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Output Stage Type | Push-Pull |
| Supply Voltage Range | 1.2V to 5.5V |
The reset signal remains active for 150ms to allow stabilization.
No, it eliminates external components by using an internal precision reference.
