This document is the user manual for Compool CP30

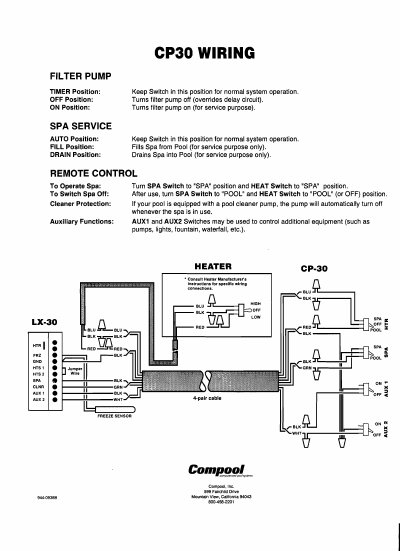

This document provides wiring instructions for the Compudl CP-30 switching system. It defines the operational positions for the filter pump and spa service switches, including OFF, ON, AUTO, FILL, and DRAIN settings. The guide explains how to configure the system for normal operation versus service purposes.
Turn the SPA Switch to the "SPA" position and the HEAT Switch to the "SPA" position.
Alter the use by turning the SPA Switch to the "POOL" and HEAT Switch to the "POOL" or OFF position.
The pump will automatically turn off whenever the spa is in use.
