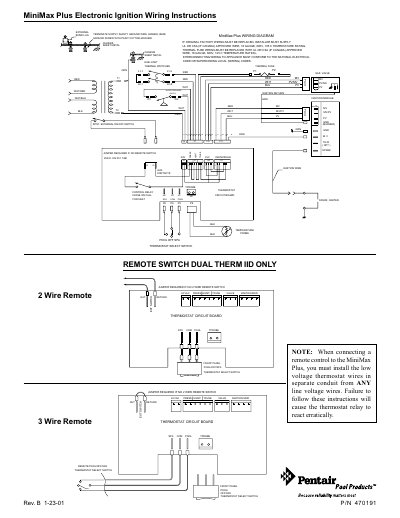

This document is the wiring diagram of MiniMax Plus
This document provides wiring diagrams and installation guidelines for the Pentair MiniMax Plus electronic ignition unit. It details requirements for terminating supply safety ground wires and replacing thermal fuses with UL or CSA approved 18 gauge wire rated at 105°C or 125°C respectively.
The guide includes specific connection instructions for various remote switch configurations, including 2-wire and 3-wire setups. It emphasizes the necessity of installing low voltage thermostat wires in a separate conduit from line voltage wires to prevent erratic relay operation.
| Temperature Rating for Thermal Fuse Wire | 105 C TEMPERATURE RATING |
|---|---|
| Wire Gauge for Shassis Replacement | 18 GAUGE |
| Temperature Rating for Shassis Wire | 125 C TEMPERATURE RATING |
The installer must supply UL or GSA approved shassis wire that is 18 gauge with a 125°C temperature rating.
The manual requires an 18 gauge wire with a 105 C temperature rating.
The replacement wiring must be an 18 gauge wire with a 125 C temperature rating.
The wiring must conform to the National Electrical Code or succeeding local (wiring) codes.
