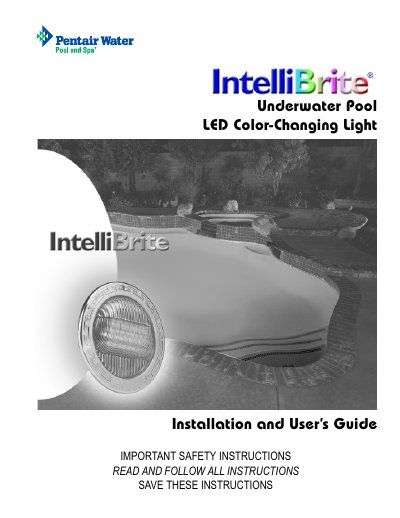

Pentair IntelliBrite Underwater Pool LED Light Installation and User's Guide

About this manual

This manual provides comprehensive installation and user guidance for the Pentair IntelliBrite Underwater Pool LED Color-Changing Light. It covers two specific models: a 120 VAC version with an integrated transformer (P/N 600101) and a 12 VAC version requiring an external isolating safety transformer (P/N 600104). The document emphasizes strict adherence to electrical codes and safety warnings regarding underwater installation.

What's inside

• IMPORTANT SAFETY PRECAUTIONS
• IntelliBrite Underwater Pool LED Color-Changing Light
• IntelliBrite Pool LED Light Models
• Operating the IntelliBrite LED Light Using a Wall Switch
• Selecting a Light Show Mode or Fixed Color
• Hold and Recall Button
• Using an IntelliBrite Controller Instead of a Wall Switch
• Installing the IntelliBrite LED Light Fixture (New Pool Construction)
• Replacing the IntelliBrite LED Light Assembly in an Existing Pool

Specifications

Frequently asked questions

Who must install the IntelliBrite underwater pool LED light?

It must be installed by a licensed or certified electrician or a qualified poolserviceman in accordance with the National Electrical Code.

Can I use non-Pentair fixture housings for this light?

No, the IntelliBrite LED light fixture must only be used with Pentair Water Pool and Spa® fixture housings (niches) to maintain U.L. approval.

How do I select a specific color mode using the wall switch?

Turn the wall switch off and on a specific number of times; for example, six cycles selects California Sunset Mode.
