Pentair Tropic Isle Heater Main Head Replacement Kit Parts List

About this manual

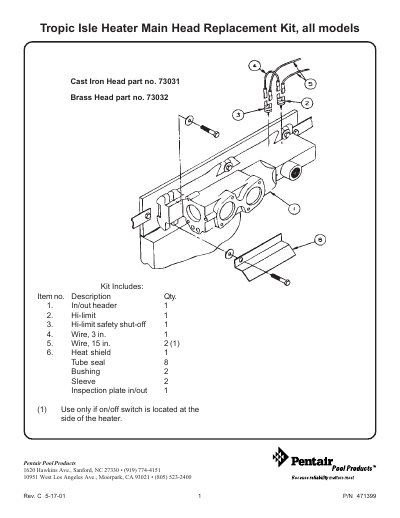

This document provides a parts breakdown for the Pentair Tropic Isle Heater Main Head Replacement Kit. It lists specific part numbers for Cast Iron Heads (73031) and Brass Heads (73032).

What's inside

• Kit Includes
• Cast Iron Head
• Brass Head

Frequently asked questions

Which heater head models are covered by this replacement kit?

This kit is designed for the Tropic Isle Heater Main Head Replacement Kit across all models.

What specific items are included in this replacement kit?

The kit includes an in/out header, a hi-limit switch, a safety shut-off, wires of 3 and 15 inches, a heat shield, tube seals, bushings, sleeves, and an inspection plate.

When should the on/off switch be located at the side of the heater?

You must use the specific sleeve provided only if the on/off switch is located at the side of the heater.
