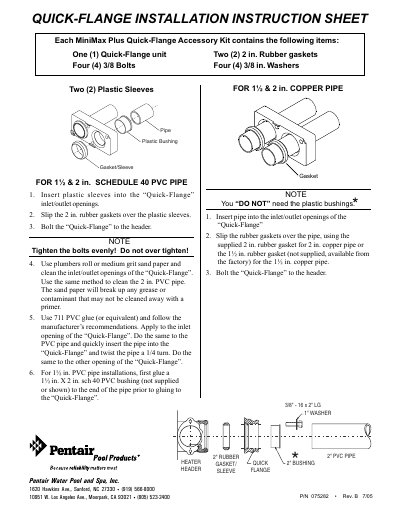

This document describes how to install the Quick-Flange Accessory Kit, including installation methods and precautions.
This document provides installation instructions for the Pentair MiniMax Plus Quick-Flange Accessory Kit. The kit includes a Quick-Flange unit, rubber gaskets, bolts, washers, and plastic sleeves designed for 1 1/2 and 2 inch copper or Schedule 40 PVC pipe. The guide details the necessary components and the step-by-step process for preparing the flange and pipe surfaces before assembly.
| Compatible Pipe Sizes | 1 1/2 in. & 2 in. |
|---|---|
| Compatible PVC Pipe Type | SCHEDULE 40 PVC PIPE |
| Included Bolts | Four (4) 3/8 Bolts |
| Included Washers | Four (4) 3/8 in. Washers |
| Included Gaskets | Two (2) 2 in. Rubber gaskets |
Tighten the bolts evenly, but do not over tighten them.
The kit contains one Quick-Flange unit, two 2-inch rubber gaskets, four 3/8 bolts, four 3/8-inch washers, and plastic sleeves for copper or PVC pipe.
No, you do not need the plastic bushings; instead, insert the plastic sleeves into the inlet and outlet openings.
Clean the inlet/outlet openings of the Quick-Flange and the pipe using plumbers roll or medium grit sand paper.
