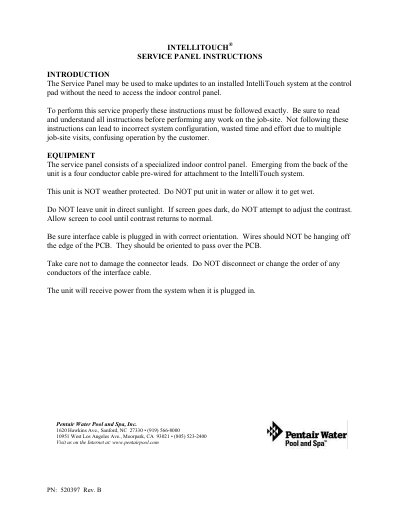

This manual provides detailed instructions on how to use the IntelliTouch® Service Panel. The panel can be used to make updates to an installed IntelliTouch system at the control pad without the need to access the indoor control panel.
The IntelliTouch Service Panel is a specialized indoor control unit used to update installed IntelliTouch systems at the control pad. It connects via a pre-wired four-conductor cable to an unused COM port on the Outdoor Control Panel (OCP) personality board. The unit requires power from the system and must not be exposed to water, direct sunlight, or wet conditions.
It allows updates to an installed IntelliTouch system at the control pad without needing to access the indoor control panel.
Plug the Service Panel into one of the COM ports on the personality board of the Outdoor Control Panel (OCP).
You must turn off the power to the system, as plugging or unplugging with power on may damage the components.
