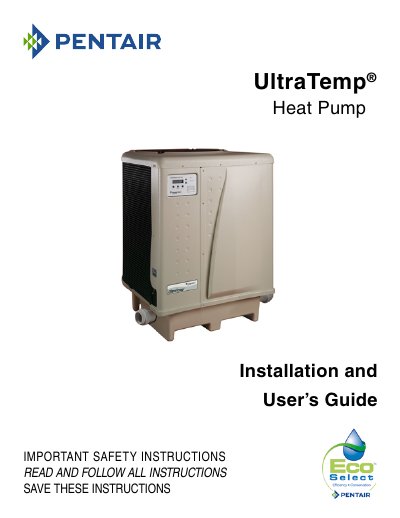

This document is the installation and user's guide for the UltraTemp® heat pump. It provides information on installation requirements, dimensions, location, water connections, and electrical connections.
The document serves as a comprehensive installation and user's guide for the Pentair UltraTemp heat pump. It covers essential safety instructions, general specifications such as water flow rates and pressure limits, and detailed requirements for proper placement and clearances to ensure optimal performance and warranty compliance.
Key sections include step-by-step procedures for electrical connections with specific wiring diagrams for single-phase and three-phase systems, plumbing connections, and integration with automation systems like IntelliTouch or EasyTouch. The guide also details the operation of the control panel, including menu navigation, timer settings, and troubleshooting common issues.
| Maximum Flow Rate | 120 gpm [456 lpm] |
|---|---|
| Minimum Flow Rate | 30 gpm [110 lpm] |
| Maximum Working Water Pressure | 50 psi |
| Usage Environment | OUTDOOR USE ONLY |
Spa or hot tub water temperatures should never exceed 104° F [40° C].
The electrical supply must be installed by a licensed, certified electrician or qualified personnel.
A bypass valve is required if the system flow rate exceeds 120 gpm.
