MMST2907A is a PNP small signal surface mount transistor with the following features:

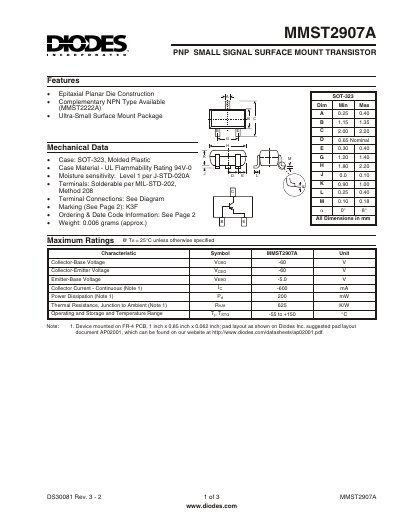

This document is a technical datasheet for the MMST2907A, a PNP small signal surface mount transistor manufactured by Diodes Incorporated. The device utilizes an epitaxial planar die construction and is housed in a standard SOT-323 molded plastic package with UL 94V-0 flammability rating.
The datasheet provides comprehensive electrical characteristics for the MMST2907A, including maximum ratings such as a collector-base voltage of -60 V and continuous collector current of -600 mA. It details on-state parameters like DC current gain (hFE) ranging from 100 to 300, along with switching times and small-signal characteristics.
| Package Type | SOT-323 |
|---|---|
| Collector-Base Voltage | -60 V |
| DC Current Gain (hFE) | 100 to 300 |
| Turn-On Time (tont) | 45 ns |
The device operates and stores within a temperature range of -55 to +150 °C.
