FDMC8015L is a N-channel power trench MOSFET, with a maximum voltage of 40V, a maximum current of 18A, and a maximum on-resistance of 26mΩ.

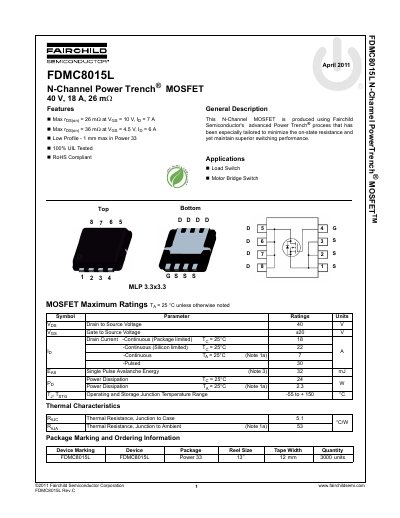

The document describes the Fairchild Semiconductor FDMC8015L, an N-Channel Power Trench MOSFET produced using advanced process technology to minimize on-state resistance while maintaining superior switching performance. The device is designed for applications such as load switches and motor bridge switches.
| Drain to Source Voltage (Vdss) | 40 V |
|---|---|
| Continuous Drain Current (Package limited) | 18 A |
| Continuous Drain Current (Silicon limited) | 22 A |
| Power Dissipation (Ta = 25°C) | 24 W |
| Operating and Storage Junction Temperature Range | -55 to +150 °C |
The device supports a maximum continuous drain current of 18 A when the case temperature is 25 °C.
The MOSFET operates and stores within a junction temperature range of -55 to + 150 °C.
The maximum power dissipation is 24 W when the case temperature equals 25 °C.
