FDMC8030 is a N-channel MOSFET manufactured by Fairchild Semiconductor Corporation. The rated voltage is 40V, the rated current is 12A, and the typical impedance is 10mΩ.

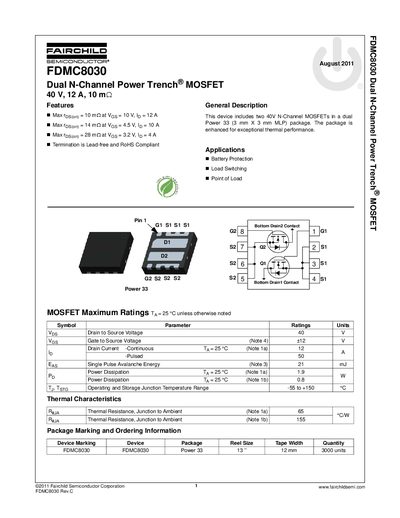

This document is a datasheet for the Fairchild Semiconductor FDMC8030, a dual N-Channel Power Trench MOSFET designed for battery protection and load switching applications. The device operates at 40V with a maximum continuous drain current of 12A and features a Power 33 (3 mm x 3 mm MLP) package optimized for thermal performance.
The datasheet provides comprehensive electrical characteristics, including maximum ratings, off and on characteristics, dynamic parameters, and switching characteristics. It also includes typical performance curves for on-resistance, transfer characteristics, and capacitance, along with dimensional outlines and pad layout recommendations for the Power 33 package.
| Drain to Source Voltage | 40 V |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Package Type | Power 33 (3 mm X 3 mm MLP) |
The device is suitable for battery protection, load switching, and point of load applications.
Yes, the termination is lead-free and ROHS Compliant.
