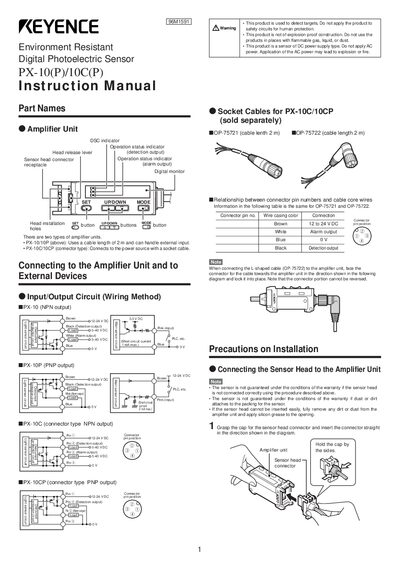

This manual introduces the structure, connection, and usage of the environment resistant digital photoelectric sensor PX-10(P)/10C(P).
The PX-10(P)/10C(P) is an environment‑resistant digital photoelectric sensor designed for detecting targets with either reflective or transmission type sensor heads. It operates from a 12–24 V DC supply and offers NPN or PNP output options.
The manual covers mounting the amplifier unit on a DIN rail, wiring connections, sensitivity calibration, detection mode selection, display functions, external input usage, and key‑lock operation. Detailed procedures and safety precautions are provided to ensure reliable performance. This manual is written in Chinese.
| Supply voltage range | 12–24 V DC |
|---|---|
| Output type | NPN or PNP |
| Short‑circuit current (input) | 1 mA max |
Hook the tab on the bottom of the amplifier unit to the DIN rail, push it in the direction of arrow 1 and tilt it as shown by arrow 2.
Press and hold the button for at least three seconds, then enter a PIN between 0 and 9999 to lock; repeat to unlock.
