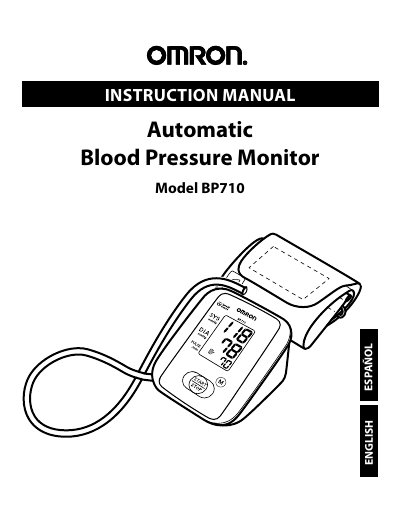

The Omron BP710 Instruction Manual explains safe operation, measurement steps, maintenance, and specifications for this home blood pressure monitor.
This manual provides safety information, operating instructions, and care guidelines for the Omron BP710 Automatic Blood Pressure Monitor. It includes detailed steps for preparing the cuff, taking measurements, using memory functions, and troubleshooting common issues.
Technical specifications such as measurement ranges, accuracy, power source, and warranty details are listed, along with diagrams of the unit display and symbols. The document also offers guidance on proper battery use and storage conditions. This manual is written in Spanish.
| Model | BP710 (HEM-7113-Z) |
|---|---|
| Display | LCD Digital Display |
| Pressure Measurement Range | 0 to 299 mmHg |
| Pulse Measurement Range | 40 to 180 /min |
| Pressure Accuracy | ±3 mmHg or 2% of reading |
| Pulse Accuracy | ±5% of reading |
| Power Source | 1.5 V 4 AAA alkaline batteries |
| Battery Life | Approx. 300 uses with 4 new alkaline batteries |
| Operating Temperature | 50 °F to 104 °F (10 °C to 40 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Main Unit Weight | Approximately 8 5/8 oz (245 g) |
| Main Unit Dimensions | ≈5" L × 4 1/8" W × 2 1/2" H |
| Cuff Size | ≈5 3/4" W × 17 1/2" L |
| Cuff Circumference | Fits 9" to 13" (220 mm to 320 mm) arms |
| Memory Capacity | Up to 14 readings |
The device can store up to 14 readings.
It uses four 1.5 V AAA alkaline batteries.
The monitor measures pressure from 0 to 299 mmHg.
Approximately 300 uses with four new alkaline batteries.
