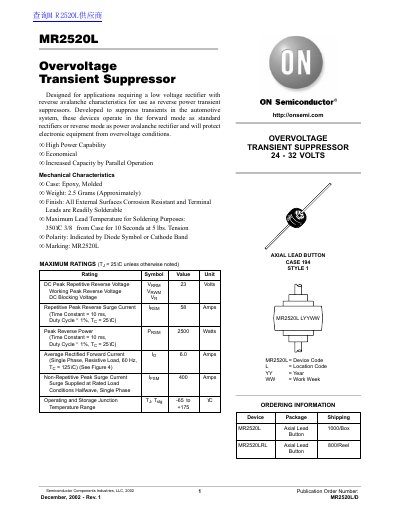

MR2520L is an overvoltage transient suppressor designed for applications requiring a low voltage rectifier with reverse avalanche characteristics for use as reverse power transient suppressors. These devices operate in the forward mode as standard rectifiers or reverse mode as power avalanche rectifier and will protect electronic equipment from overvoltage conditions.
The MR2520L is an overvoltage transient suppressor designed to protect electronic equipment from overvoltage conditions in automotive systems. It operates as a standard rectifier in the forward mode and as a power avalanche rectifier in reverse mode, featuring high power capability and economical design.
| DC Peak Repetitive Reverse Voltage | 23 Volts |
|---|---|
| Repetitive Peak Reverse Surge Current | 58 Amps |
| Peak Reverse Power | 2500 Watts |
| Average Rectified Forward Current | 6.0 Amps |
| Non-Repetitive Peak Surge Current | 400 Amps |
| Operating and Storage Junction Temperature Range | -65 to +175 °C |
The maximum lead temperature for soldering is 350°C, measured 3/8" from the case for 10 seconds at 5 lbs. tension.
The DC peak repetitive reverse voltage rating is 23 Volts.
