This document is about the datasheet of MAC229A8FP, which details its maximum ratings, operating temperature range, storage temperature range and other parameters

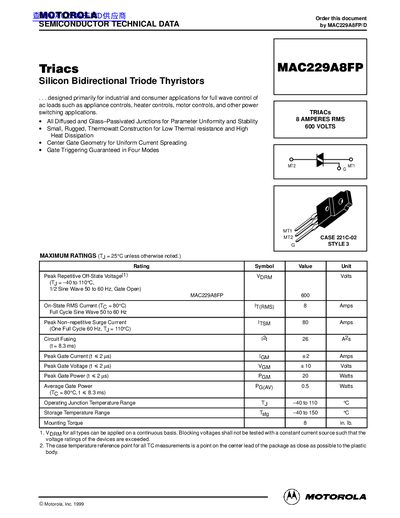

This document is a technical datasheet for the Motorola MAC229A8FP, a Silicon Bidirectional Triode Thyristor (Triac). It is designed primarily for industrial and consumer applications involving full-wave control of AC loads, such as appliance controls, heater controls, motor controls, and other power switching applications. The device features diffused and glass-passivated junctions for parameter uniformity and stability.
| Peak Repetitive Off-State Voltage | 600 Volts |
|---|---|
| On-State RMS Current | 8 Amps |
| Peak Non-repetitive Surge Current | 80 Amps |
| Operating Junction Temperature Range | -40 to 110 °C |
| Thermal Resistance, Junction to Case | 22 °C/W |
The device supports an on-state RMS current of 8 Amps when the case temperature is 80°C.
The junction can operate between -40°C and 110°C, while storage is allowed from -40°C to 150°C.
The specified mounting torque is 8 in. lb.
