This document is a parameter specification table for MAC229FP series and MAC229AFP series silicon bidirectional triode thyristors, including rated voltage, rated current, maximum current, working temperature range, etc.

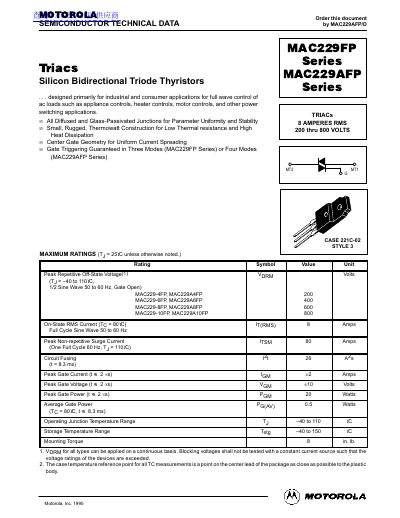

This document provides technical specifications for the Motorola MAC229FP Series and MAC229AFP Series Triacs. These Silicon Bidirectional Triode Thyristors are designed primarily for full wave control of AC loads, including appliance controls, heater controls, motor controls, and other power switching applications.
The datasheet details maximum ratings such as peak repetitive off-state voltage ranging from 200 to 800 volts and an on-state RMS current of 8 amperes. It also lists electrical characteristics like gate trigger current, holding current, and thermal resistance values.
| On-State RMS Current (Tc = 80°C) | 8 Amps |
|---|---|
| Peak Non-repetitive Surge Current ITSM | 80 Amps |
| Operating Junction Temperature Range | -40 to 110°C |
| Thermal Resistance, Junction to Case | 22 °C/W |
| Peak Gate Power (t < 2 us) | 20 Watts |
They are designed primarily for industrial and consumer applications for full wave control of ac loads such as appliance controls, heater controls, and motor controls.
The devices have a peak non-repetitive surge current of 80 Amps and a circuit fusing rating of 26 Amperes.
The maximum mounting torque required is 8 in. lb.
