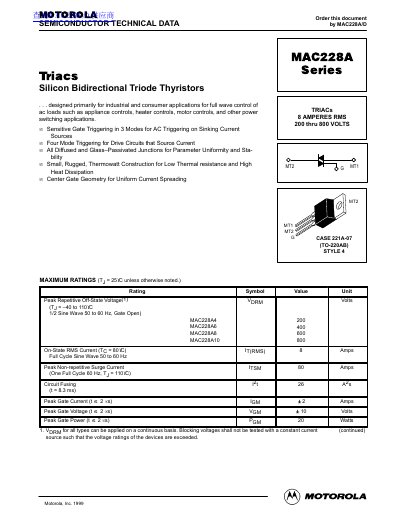

This document provides the maximum ratings, specifications, performance parameters, etc. of the MAC228A series products.
The Motorola MAC228A Series consists of silicon bidirectional triode thyristors designed primarily for industrial and consumer applications. These devices are intended for full-wave control of AC loads such as appliance controls, heater controls, motor controls, and other power switching applications.
Key features include sensitive gate triggering in three modes for AC triggering on sinking current sources, four-mode triggering for drive circuits that source current, and diffused glass-passivated junctions. The devices feature a small, rugged thermowatt construction with center gate geometry for uniform current spreading.
| Peak Repetitive Off-State Voltage (VDRM) | 200 to 800 Volts |
|---|---|
| On-State RMS Current (IT(RMS)) | 8 Amps |
| Peak Non-repetitive Surge Current (ITSM) | 80 Amps |
| Operating Junction Temperature Range | -40 to 110 °C |
| Thermal Resistance (Junction to Case) | 2.0 °CAV |
The device is rated for an on-state RMS current of 8 Amps when the case temperature is 80°C.
The operating junction temperature range is from -40 to 110 °C.
The maximum mounting torque is 8 in. Ib.
