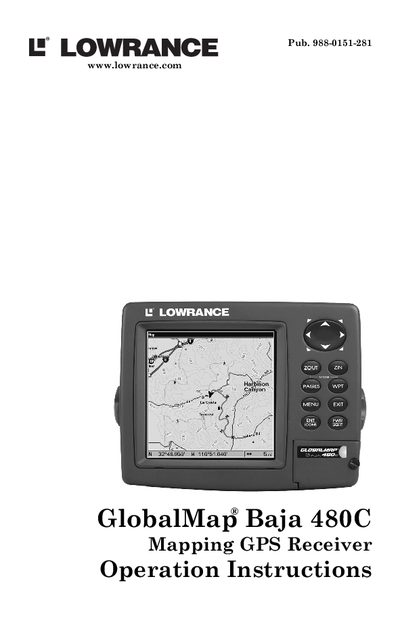

Lowrance Baja 480C Mapping GPS Receiver Operation Instructions

This manual describes the operation of the GlobalMap Baja 480C Mapping GPS Receiver.

Brand: GlobalMap
Category: Vehicle GPS
Document type: User Manual
Language: English
Pages: 140
File format: PDF
File size: 3 MB
Published: 11 July, 2012
Updated: 30 September, 2023
MD5 checksum: EEDD9BC4C28284F2B635C7CB24D8B4BD
PDF: Lowrance Baja 480C Mapping GPS Receiver Operation Instructions PDF

About this manual

This manual provides operation instructions for the Lowrance Baja 480C Mapping GPS Receiver. It covers installation preparations, power connections, and mounting options for the unit and GPS antenna module. The guide also details how to install MMC or SD card memory cards and lists other available accessories.

What's inside

Capabilities and Specifications
How Lowrance GPS Works
Installation & Accessories
Basic GPS Operations
Advanced GPS Operations
System & GPS Setup Options
Searching
Supplemental Material

Specifications

Resolution	480 pixel x 480 pixel resolution; 230,400 total pixels
Backlighting	Incandescent cold cathode backlit screen with multiple lighting levels
Input power	10 to 15 volts DC

Frequently asked questions

What is the input power requirement for the Baja 480C?

The unit requires an input power of 10 to 15 volts DC.

Can the Baja 480C store custom maps and GPS data files?

Yes, the manual describes how to transfer custom maps and GPS data files to the unit.
