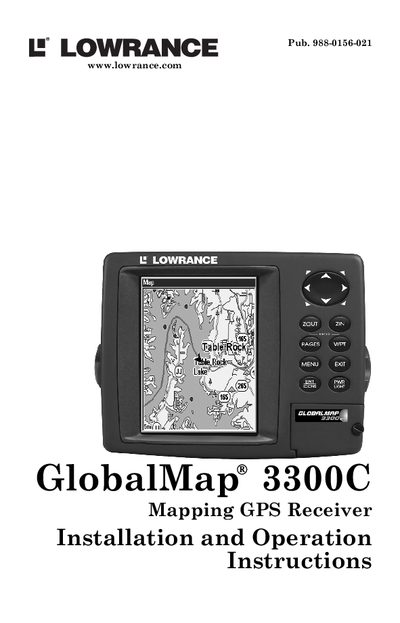

《GlobalMap 3300C Mapping GPS Receiver Installation and Operation Instructions》 is a manual released by Lowrance Electronics on the installation and operation of the GlobalMap 3300C GPS receiver. This manual introduces the features and functions of the GPS receiver, as well as how to install and use it.
This manual provides comprehensive instructions for installing and operating the Lowrance GlobalMap 3300C, a compact color display mapping GPS receiver. It covers hardware setup including antenna connection, power supply, and mounting options such as bracket or in-dash installation.
The guide details basic and advanced navigation operations, including map viewing, waypoint creation, route planning, and trail logging. Users will also learn how to customize system settings, configure NMEA ports, utilize search functions for points of interest, and manage data storage on MMC cards.
| Display Type | 1/4 VGA color, transflective TFT display; 5.0" diagonal viewing area |
|---|---|
| Resolution | 320 pixels (vert.) x 240 pixel (horiz.) resolution |
| Input Power | 10 to 15 volts DC |
| Current Drain | 700 ma with lights on |
| Case Dimensions | 5.4" H x 6.9" W x 3.4" D (13.8 x 17.6 x 8.6 cm) |
| Durability | Sealed and waterproof; suitable for saltwater use |
The unit requires an input power of 10 to 15 volts DC.
Yes, the case is sealed and waterproof, making it suitable for saltwater use.
The manual covers mounting options including direct installation using a bracket or in-dash installation.
