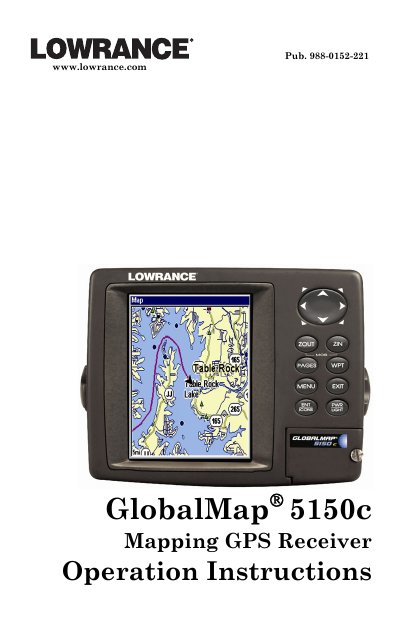

Lowrance GlobalMap 5150c Mapping GPS Receiver Operation Instructions

About this manual

This manual provides comprehensive operation instructions for the Lowrance GlobalMap 5150c Mapping GPS Receiver. It guides users through installation, including power connections and mounting options, as well as the setup of accessories like MMC or SD cards. The document details how to navigate the device's interface, manage maps, and utilize various navigation features.

What's inside

• Capabilities and Specifications
• How GPS Works
• Installation & Accessories
• Basic GPS Operations
• Advanced GPS Operations
• System & GPS Setup Options
• Searching
• Supplemental Material

Frequently asked questions

What is the operating temperature range for the unit?

The storage and operation temperature range is from -20 degrees to +167 degrees Fahrenheit (-28 degrees to +75 degrees Celsius).

What voltage is required to power the receiver?

The receiver requires an input power of 10 to 15 volts DC.

How much current does the unit draw when the lights are on?

The unit draws 700 ma of current with the lights on.
