This document introduces the use of Lowrance GLOBALMAP 3000, including usage precautions, operating temperature range, etc.

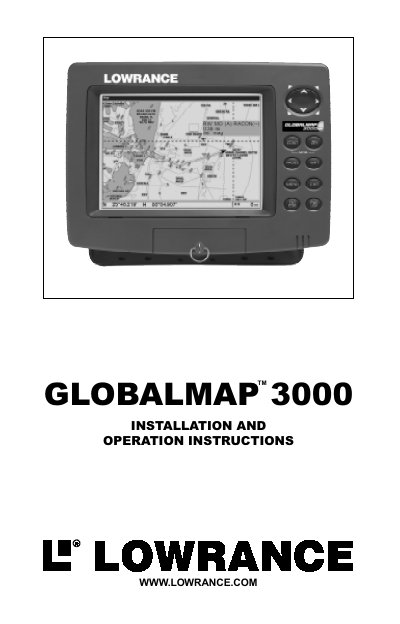

This manual provides installation and operation instructions for the Lowrance GLOBALMAP 3000 marine GPS receiver. It details the mounting process, power connections, and wiring for NMEA/DGPS interfaces to ensure proper setup and minimize electrical interference. The device features a monochrome transflective display and supports various navigation functions including waypoints, routes, and plot trails.
| Dimensions (on bracket) | 9.6" W x 7.3" H x 3.7" D |
|---|---|
| Input Voltage | 10 - 15 vDC, 12-volt Nominal |
| Display | 6.54" diagonal Monochrome Transflective |
| Resolution | 350 pixel H x 480 pixel W |
| Operating Temperature | -20 to +75 degrees Celsius |
| Waypoints Capacity | 750 |
| Routes Capacity | 100 |
| Icons Capacity | 1000 |
A 6-amp fuse must be used to protect the cable and unit in case of a short circuit.
No, the manual states not to use the product without a 6-amp fuse connected, as failure to do so will void the warranty.
The unit operates from -4 degrees to +167 degrees Fahrenheit (-20 to +75 degrees Celsius).
