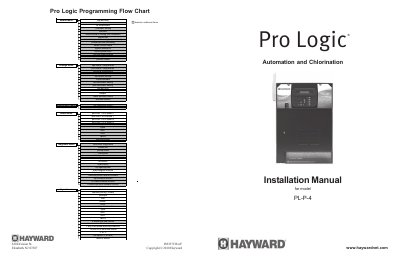

This document is the installation manual for Hayward Automation and Chlorination equipment, providing the logic programming flow and features of the Pro Logic PL-P-4 model. The document provides detailed information on menus, settings, and troubleshooting, helping users to correctly install and operate the equipment.
The document serves as an installation guide for the Hayward Pro Logic PL-P-4 pool automation controller. It details safety precautions regarding electrical grounding and bonding, along with warranty information specific to Hayward/Goldline products.
Key sections include preparation steps for water chemistry, equipment mounting, plumbing connections, and detailed electrical wiring instructions. The manual also covers system configuration menus, startup procedures, heater checkout protocols, and service mode operation.
Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
Service operation continues for 3 hours, then automatically returns to normal operation.
