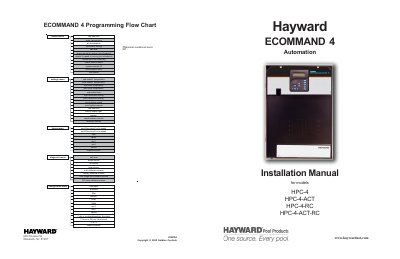

HAYWARD HPC-4 HPC-4-ACT HPC-4-RC HPC-4-ACT-RC Installation Manual

About this manual

This manual provides installation instructions for the Hayward ECOMMAND 4 Automation System, specifically models HPC-4, HPC-4-ACT, HPC-4-RC, and HPC-4-ACT-RC. It details the components included in the package and those required separately to complete a typical installation.

What's inside

• Introduction
• Mounting ECOMMAND 4 Control Center
• Equipment Temperature Sensors
• Optional Wireless Remote Control
• Plumbing Configuration
• Main Service Wiring
• Wiring Grounding and Bonding
• Circuit Breaker Installation
• ECOMMAND 4 Control Power
• Configuration Menu

Frequently asked questions

What is the warranty period for Goldline pool automation products installed in private residential swimming pools?

Goldline warrants these products to be free of defects for a period of three years from the initial date of installation.

What is the minimum wire size required to connect the equipment grounding bus to metal components within 5 feet of the unit?

You must use copper conductors not smaller than 8 AWG for US models or 6 AWG for Canadian models.

What temperature of water is considered hazardous to health according to the safety instructions?

Water in excess of 100 degrees Fahrenheit may be hazardous to your health.
