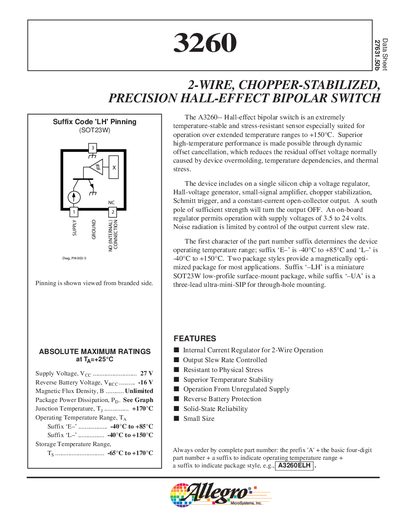

The A3260 is an extremely temperature-stable and stress-resistant Hall-effect bipolar switch that is particularly well suited for operation over extended temperature ranges up to +150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. The device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a constant-current open-collector output. A south pole of sufficient strength will turn the output OFF. An on-board regulator permits operation with supply voltages of 3.5 to 24 volts. Noise radiation is limited by control of the output current slew rate. The first character of the part number suffix determines the device operating temperature range; suffix ‘E–’ is -40°C to +85°C and ‘L–’ is -40°C to +150°C. Two package styles provide a magnetically opti- mized package for most applications. Suffix ‘–LH’ is a miniature SOT23W low-profile surface-mount package, while suffix ‘–UA’ is a three-lead ultra-mini-SIP for through-hole mounting.
The document describes the A3260, a 2-wire, chopper-stabilized precision Hall-effect bipolar switch manufactured by Allegro MicroSystems. It is designed for operation over extended temperature ranges up to +150°C and features dynamic offset cancellation for superior stability. The device integrates a voltage regulator, Hall-voltage generator, amplifier, Schmitt trigger, and constant-current open-collector output on a single silicon chip.
| Supply Voltage (Vcc) | 3.5 to 24 V |
|---|---|
| Output Current (B > Bop) | -65 mA |
| Chopping Frequency (fo) | 340 kHz |
| Output Settling Time (tset) | 20 µs |
| Operate Point Flux Density (Bop) | 40 G |
| Release Point Flux Density (Bap) | -10 G |
The device with suffix 'L-' operates from -40°C to +150°C.
The device with suffix 'E-' operates from -40°C to +85°C.
No, it includes an on-board regulator that permits operation with unregulated supplies.
