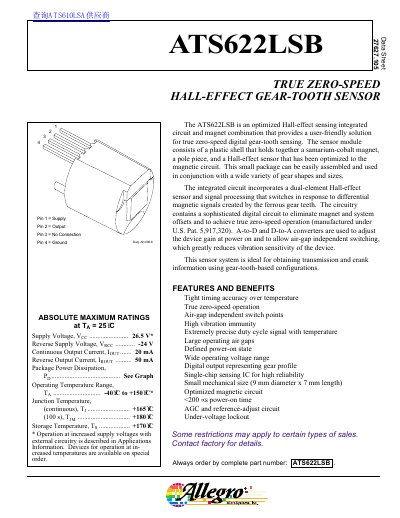

ATS622LSB data sheet is a hall effect gear tooth sensor that uses an optimized Hall-effect sensing integrated circuit and magnet combination to provide a user-friendly solution for true zero-speed digital gear tooth sensing. The sensor module consists of a plastic shell that holds together a samarium-cobalt magnet, a pole piece, and a Hall-effect sensor that has been optimized to the magnetic circuit. This small package can be easily assembled and used in conjunction with a wide variety of gear shapes and sizes. The integrated circuit incorporates a dual-element Hall-effect sensor and signal processing that switches in response to differential magnetic signals created by the ferrous gear teeth. The circuitry contains a sophisticated digital circuit to eliminate magnet and system offsets and to achieve true zero-speed operation (manufactured under U.S. Pat. 5,917,320). A-to-D and D-to-A converters are used to adjust the device gain at power on and to allow air-gap independent switching, which greatly reduces vibration sensitivity of the device. This sensor system is ideal for obtaining transmission and crank information using gear-tooth-based configurations.
The ATS622LSB is an optimized Hall-effect sensing integrated circuit combined with a samarium-cobalt magnet, designed for true zero-speed digital gear-tooth sensing. The module consists of a plastic shell holding the magnet, pole piece, and sensor, making it ideal for obtaining transmission and crank information using gear-tooth-based configurations.
| Supply Voltage (Operating) | 4.5 to 24 V |
|---|---|
| Continuous Output Current | 20 mA |
| Operating Temperature Range | -40°C to +150°C |
| Package Power Dissipation (Ta=25°C) | See Graph |
| Air Gap Range | 0.5 to 2.5 mm |
| Power-On Time | < 200 µs |
It provides a user-friendly solution for true zero-speed digital gear-tooth sensing.
No, no additional optimization or processing circuitry is required after correct power is applied.
The sensor module uses a samarium-cobalt magnet.
