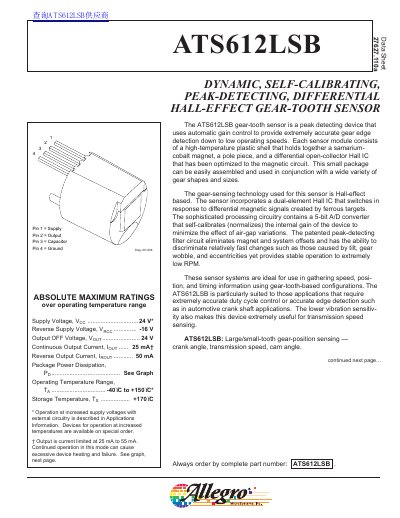

This datasheet introduces the features of ATS612LSB gear tooth sensor, including automatic gain control, differential open-collector Hall IC, high-temperature plastic shell, small package, and a variety of gear shapes and sizes
The ATS612LSB is a dynamic, self-calibrating, peak-detecting, differential Hall-effect gear-tooth sensor designed for accurate edge detection. It utilizes a dual-element Hall IC with a 5-bit A/D converter that self-calibrates to minimize air-gap variations and includes a patented peak-detecting filter to eliminate offsets caused by tilt or wobble. The device is optimized for applications requiring accurate duty cycle control or edge detection, such as automotive crankshaft and transmission speed sensing.
| Continuous Output Current | 25 mA |
|---|---|
| Operating Temperature Range | -40°C to +150°C |
| Storage Temperature | +170°C |
| Air Gap Range | 0.4 - 2.5 mm |
| Target Speed | > 20 RPM |
| Timing Accuracy | +0.5° |
The typical power-on time is 80 µs.
Yes, it requires one output edge before calibration is completed.
The output current limit ranges from 25 mA to 55 mA.
