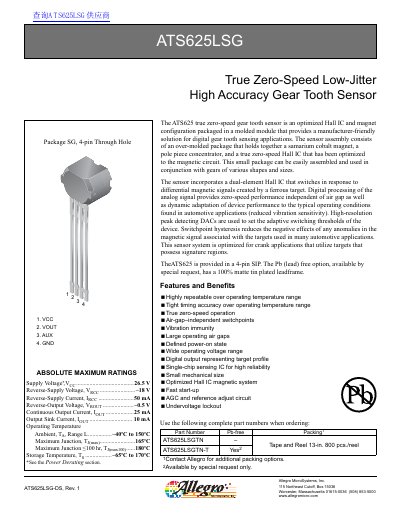

ATS625LSG is a digital gear tooth sensor produced by Allegro, which has high repeatability, high accuracy, high reliability and other characteristics.
The ATS625LSG is a true zero-speed low-jitter high accuracy gear tooth sensor designed for digital gear tooth sensing applications. It consists of an over-molded package containing a samarium cobalt magnet, a pole piece concentrator, and a dual-element Hall IC optimized for automotive crank applications. The device provides a digital output representing the target profile with high repeatability and tight timing accuracy over the operating temperature range.
| Supply Voltage | 4.0 - 24 V |
|---|---|
| Maximum Junction Temperature | 165°C |
| Bandwidth | 20 kHz |
| Outside Diameter of Reference Target | 120 mm |
The ATS625LSG is provided in a 4-pin SIP package.
Yes, a Pb-free option is available by special request with a 100% matte tin plated leadframe.
The target material must be low carbon steel.
