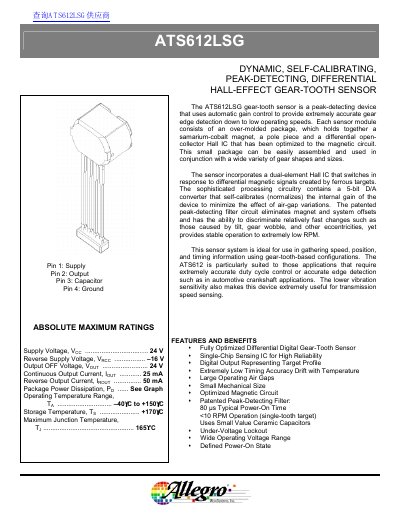

ATS612LSG Dynamic, Self-Calibrating, Peak-Detecting, Differential Hall-Effect Gear-Tooth Sensor
The ATS612LSG is a fully optimized digital gear-tooth sensor module designed to provide accurate edge detection and timing information. It utilizes a single-chip sensing IC combined with an over-molded package containing a samarium-cobalt magnet and a pole piece. The device incorporates automatic gain control (AGC) and a patented peak-detecting filter circuit to minimize the effects of air-gap variations, tilt, gear wobble, and eccentricities.
| Power-On Delay | 80 us to 500 us |
|---|---|
| Thermal Resistance (Rtheta) | 126°C/Watt |
The typical power-on time is 80 microseconds.
Yes, it supports operation down to less than 10 RPM for a single-tooth target.
The reference target is made of low carbon steel.
