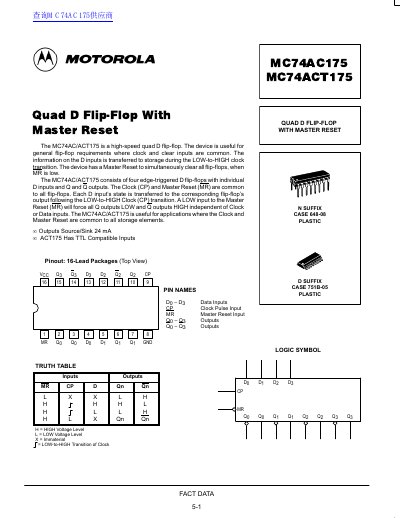

The MC74AC/ACT175 is a high-speed quad D flip-flop. The device is useful for general flip-flop requirements where clock and clear inputs are common. The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition. The device has a Master Reset to simultaneously clear all flip-flops, when MR is low. The MC74AC/ACT175 consists of four edge-triggered D flip-flops with individual D inputs and Q and Q outputs. The Clock (CP) and Master Reset (MR) are common to all flip-flops. Each D input’s state is transferred to the corresponding flip-flop’s output following the LOW-to-HIGH Clock (CP) transition. A LOW input to the Master Reset (MR) will force all Q outputs LOW and Q outputs HIGH independent of Clock or Data inputs. The MC74AC/ACT175 is useful for applications where the Clock and Master Reset are common to all storage elements.
The document describes the MC74AC/ACT175, a high-speed quad D flip-flop device featuring four edge-triggered flip-flops with individual D inputs and Q/Q outputs. The Clock (CP) and Master Reset (MR) inputs are common to all flip-flops, allowing for simultaneous clearing when MR is low. Information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition.
| Outputs Source/Sink Current | 24 mA |
|---|---|
| Package Type | 16-Lead Packages |
| DC Supply Voltage Range | -0.5 to +7.0 V |
| Storage Temperature | -65 to +150 °C |
| Operating Ambient Temperature | -40 to +85 °C |
| Maximum Clock Frequency (5.0V) | 187 MHz |
| Input Capacitance | 45 pF |
A LOW input to the Master Reset (MR) will force all Q outputs LOW and Q outputs HIGH independent of Clock or Data inputs.
The information on the D inputs is transferred to storage during the LOW-to-HIGH clock transition.
Yes, the MC74ACT175 has TTL Compatible Inputs, while the MC74AC175 is a standard high-speed device.
