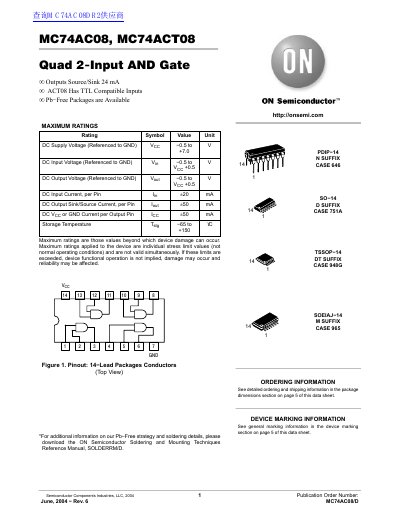

ON Semiconductor MC74AC08/MC74ACT08 Quad 2-Input AND Gate Datasheet

MC74AC08, MC74ACT08 Quad 2-Input AND Gate Outputs Source/Sink 24 mA 'ACT08 Has TTL Compatible Inputs Pb-Free Packages are Available

Brand: ON Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 88 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9C3540541526E2B057645FE1E3135762
PDF: ON Semiconductor MC74AC08/MC74ACT08 Quad 2-Input AND Gate Datasheet PDF

About this manual

This document is a technical datasheet for the MC74AC08 and MC74ACT08 devices, which are Quad 2-Input AND Gates. The components feature TTL-compatible inputs and outputs capable of sourcing or sinking up to 24 mA. They are available in various leaded and surface-mount packages including PDIP, SOIC, TSSOP, and SOEIAJ.

What's inside

Maximum Ratings
Recommended Operating Conditions
DC Characteristics
AC Characteristics
Capacitance
Marking Diagrams
Ordering Information
Package Dimensions

Specifications

Outputs Source/Sink Current	24 mA
DC Supply Voltage (Vcc)	-0.5 to +7.0 V
Operating Ambient Temperature Range	-40°C to +85°C
Input Capacitance (Typical)	4.5 pF

Frequently asked questions

How much current can each output pin sink or source?

Each output pin can sink or source up to 24 mA of current.

What is the operating ambient temperature range for these devices?

The recommended operating ambient temperature range is from -40°C to +85°C.
