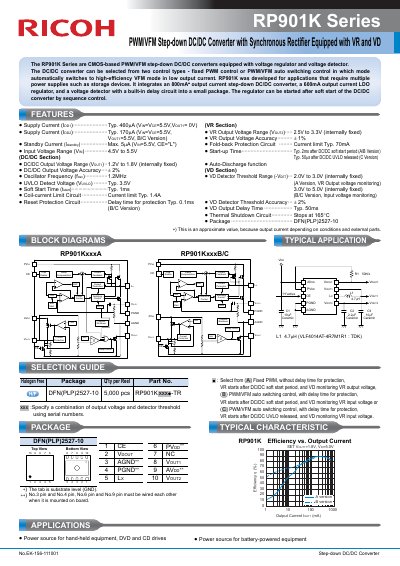

The RP901K Series are CMOS-based PWM/VFM step-down DC/DC converters equipped with voltage regulator and voltage detector. The DC/DC converter can be selected from two control types - fixed PWM control or PWM/VFM auto switching control in which mode automatically switches to high-efficiency VFM mode in low output current. RP901K was developed for applications that require multiple power supplies such as storage devices. It integrates an 800mA output current step-down DC/DC converter, a 600mA output current LDO regulator, and a voltage detector with a built-in delay circuit into a small package. The regulator can be started after soft start of the DC/DC converter by sequence control.
The RP901K Series are CMOS-based PWM/VFM step-down DC/DC converters equipped with a voltage regulator (VR) and voltage detector (VD). The device integrates an 800mA output current step-down DC/DC converter, a 600mA output current LDO regulator, and a voltage detector with a built-in delay circuit into a small DFN(PLP)2527-10 package. It is designed for applications requiring multiple power supplies, such as storage devices.
| Output Current (DC/DC Section) | 800mA |
|---|---|
| LDO Output Current | 600mA |
| Input Voltage Range (DC/DC Section) | 4.5V to 5.5V |
| Oscillator Frequency | 2MHz |
| Package Type | DFN(PLP)2527-10 |
The converter is developed for applications that require multiple power supplies, such as storage devices, and it serves as a power source for hand-held equipment, DVD and CD drives, and battery-powered equipment.
The input voltage range for the DC/DC section is 4.5V to 5.5V.
